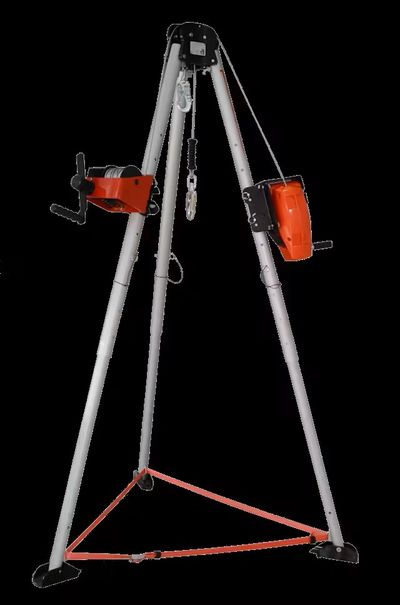

Checkmate Safety TR3 Tripod Kit

---

Ultra lightweight (15kg), tough, and with a durable alloy construction, the TR3 Tripod is primarily to be used as personal protective equipment, to provide access or fall protection in confined space environments.

Key Features:

•  2 x Pulleys are protected from damage by an extended crown

•  2 x Spring Loaded Sliding Pulleys for ease of setup and retaining pin to prevent cable coming off the pulley

•  1 x Eye Bolt attachment point for personal SRL or rope device

•  Automatic leg lock out catches with trigger release

• Load Capacity:  Fall Arrest (EN): Single user max 150kg [+1 operator]

• Goods carrying: 250kg

• Height: 1.4m - 2.4m

• Diameter: 1m - 1.43m

• Folded Length: 1.5m

The WG-01 Rescue Winch is suitable for personnel hoisting 140kg or material handling 250kg in rescue or confined space applications. It features an adjustable-leverage handle with a maximum 11kgs. of force required for operation.

• 20m Drum Capacity

• Galvanised Wire Rope
• 5mm 7x19 Wire Core

• Fall Arrest Indicator with Swivel Hook
• Deployment Indicator notifies if the system has been subjected to a shock load.

• WG-02 winch bracket to fit Checkmate TR3 Tripod.

• Adjustable Handle - Handle length can be adjusted to increase or reduce torque.
If using the WG-01 for manriding applications, a FABXR is the ideal back-up and rescue device.

The FABX2R & FABXLR function as standard Fall Arrest Block, but in the event of a fall, the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker Product Code •  Fitted as standard with a bracket to suit either the TR3 Tripod

Features:

• Independent brake pawls for fail safe capability

• Brush Cleaning System to reduce debris entering the housing

• Sealed brake module, maximising braking efficiency

• Alloy swivel hook with load indicator

• Recovery handle for rescue

• Maximum User weight (including all clothing, tools, and equipment) is 136kg.
